BLUEPRINTS

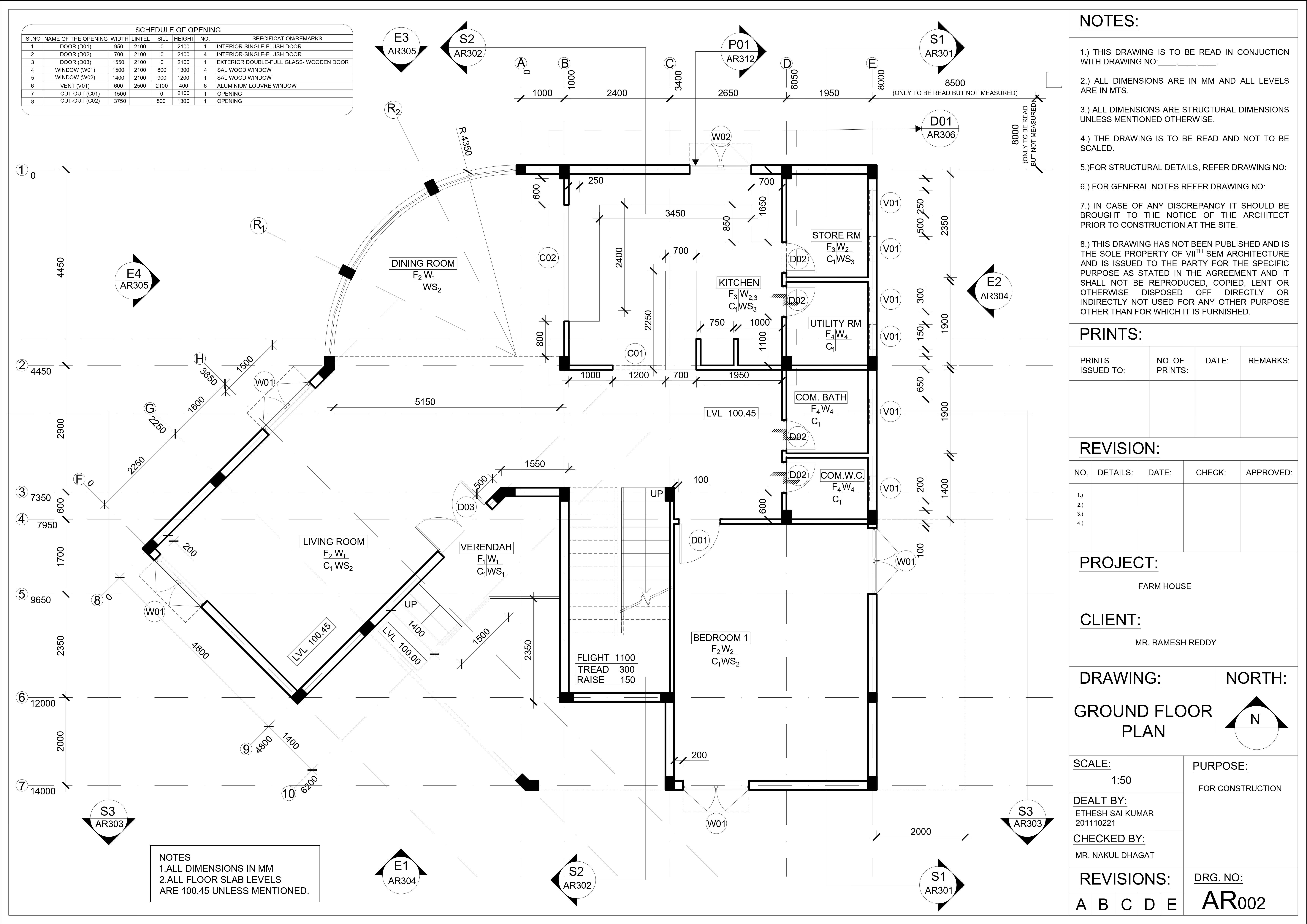

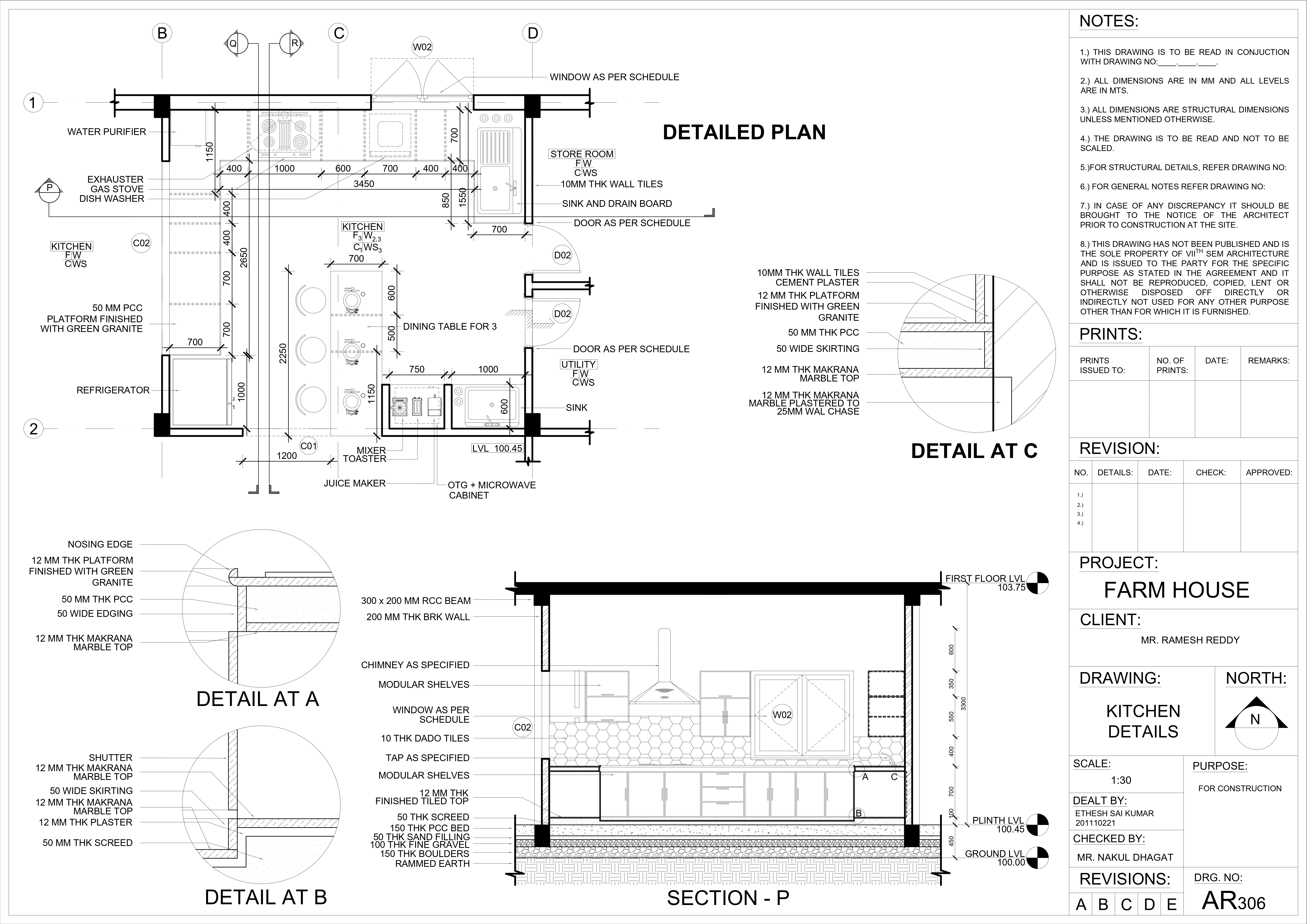

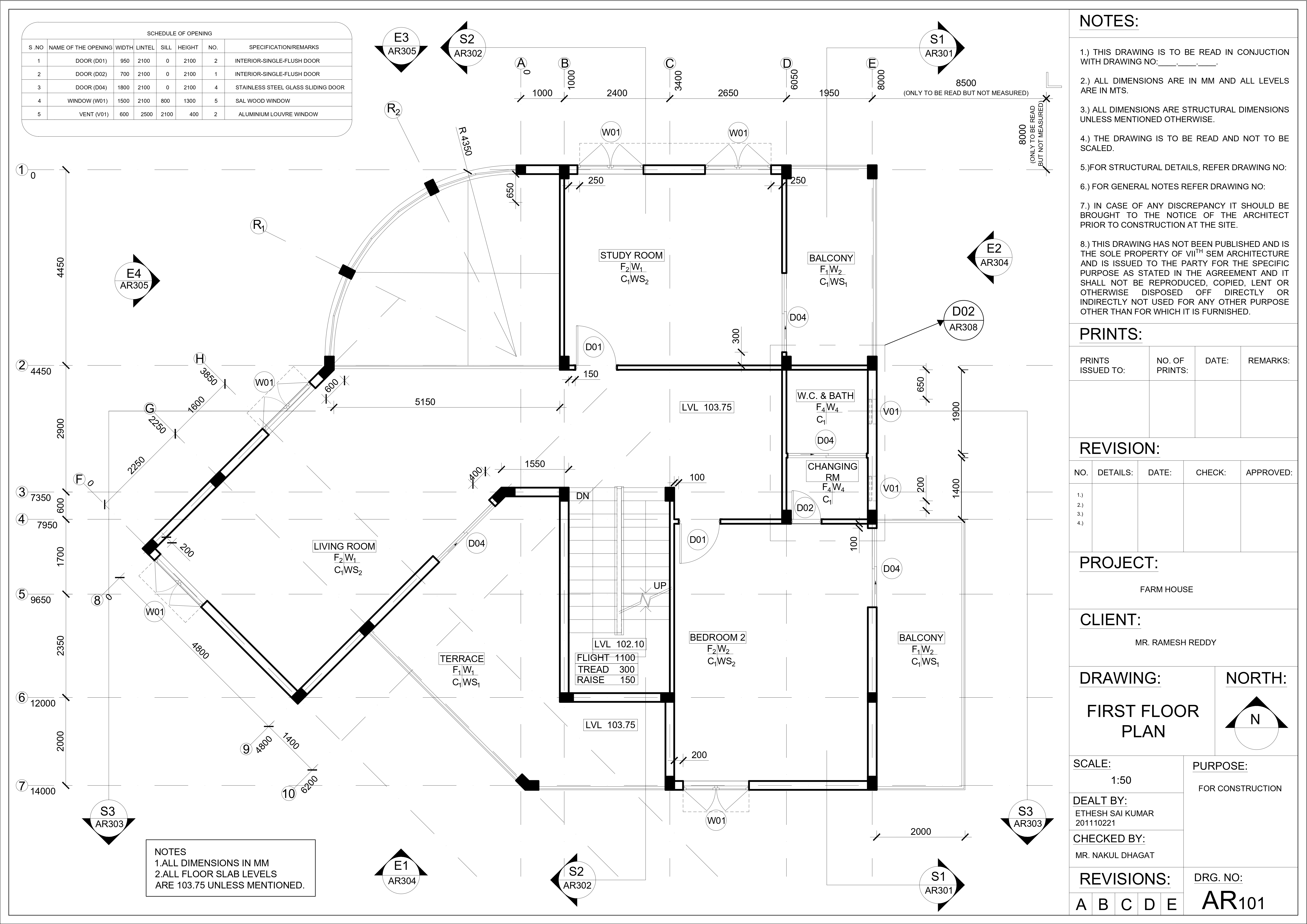

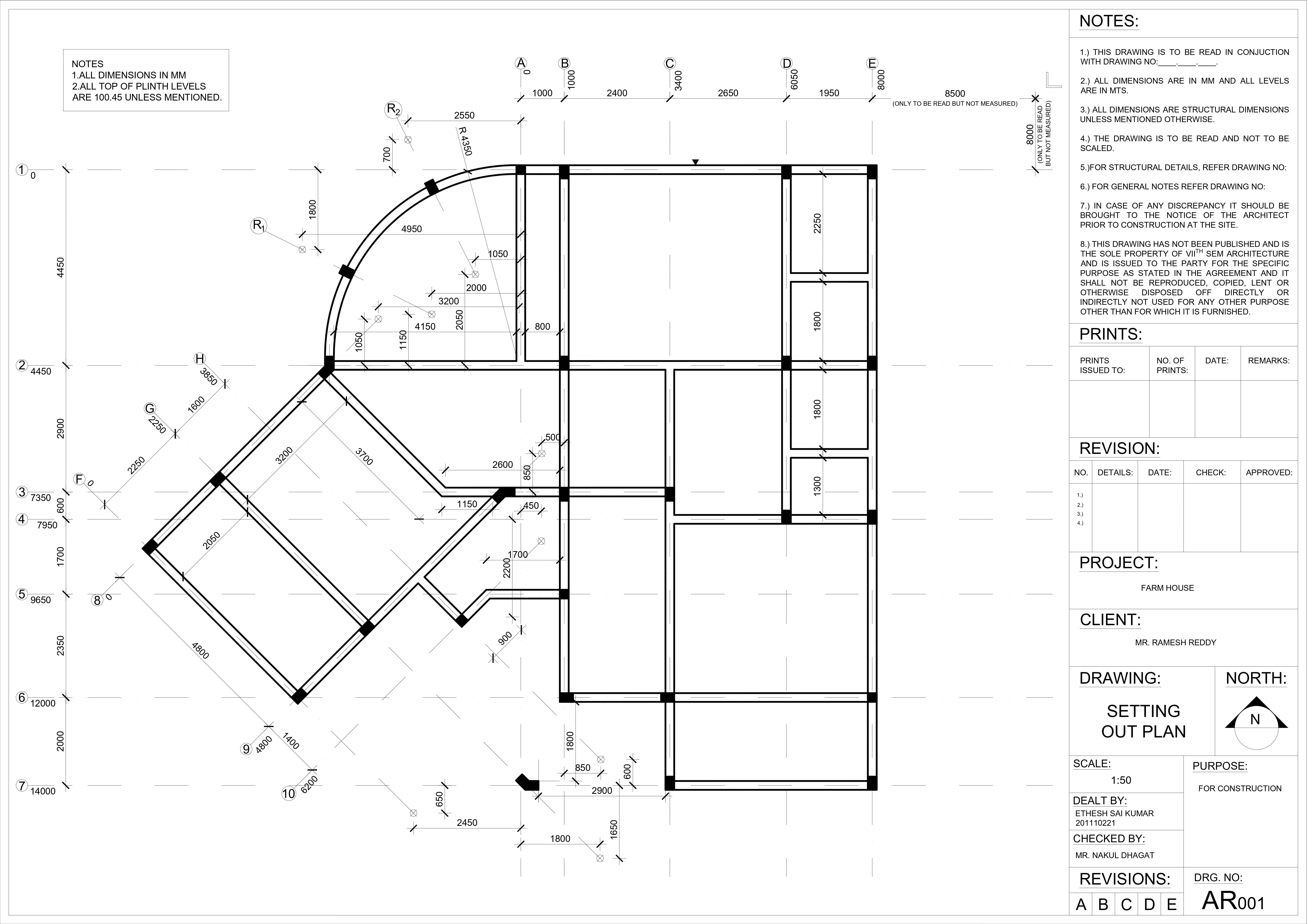

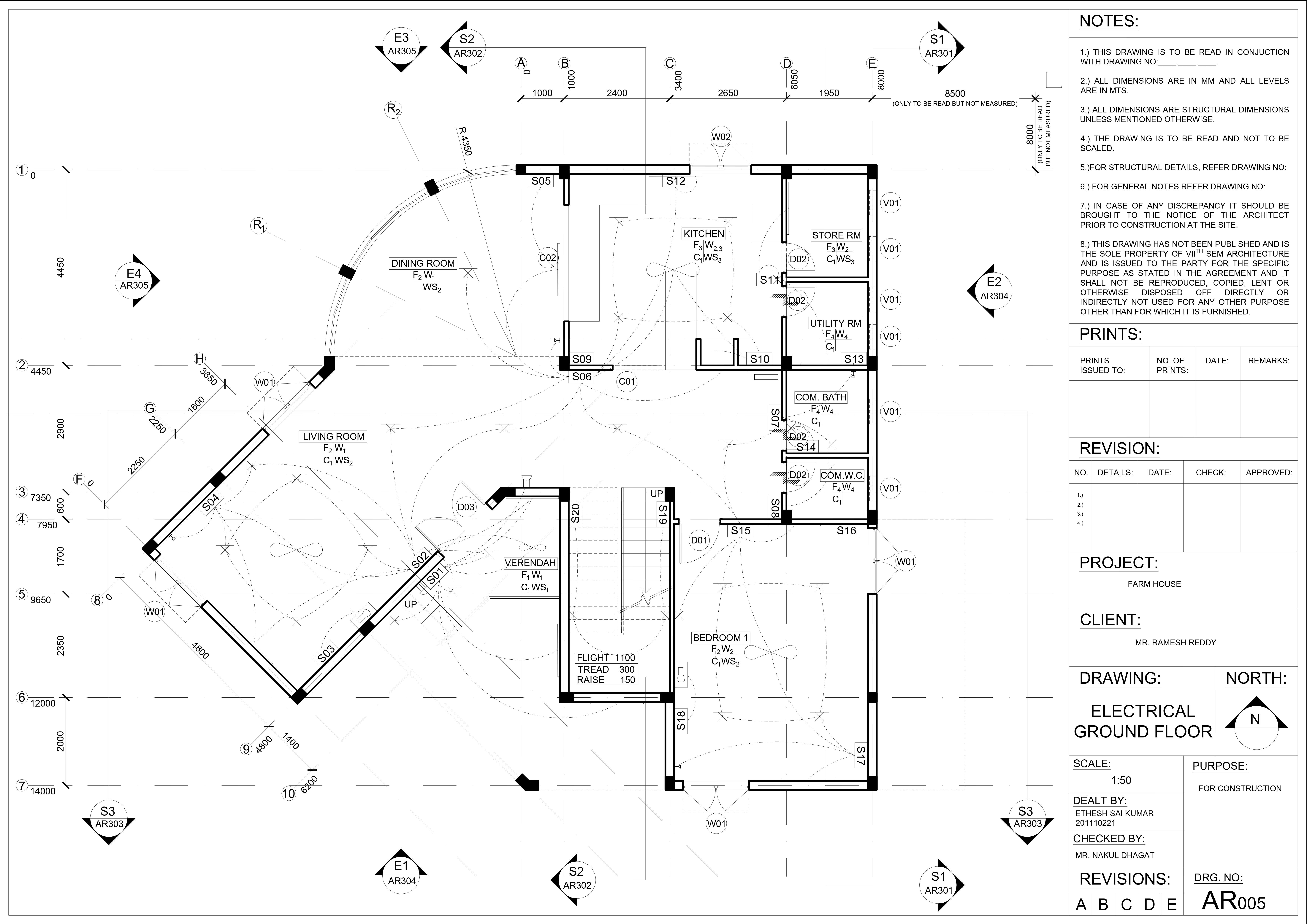

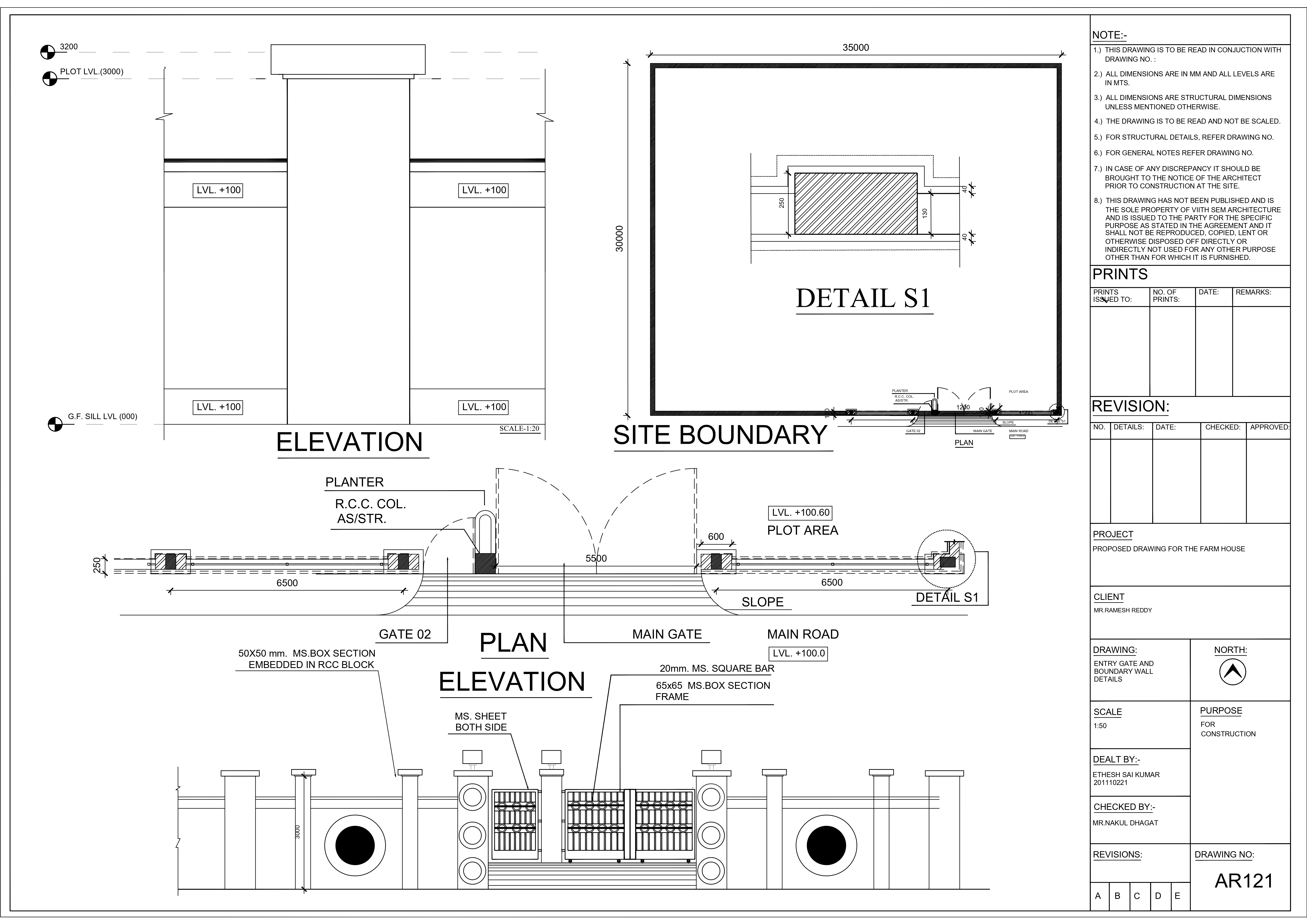

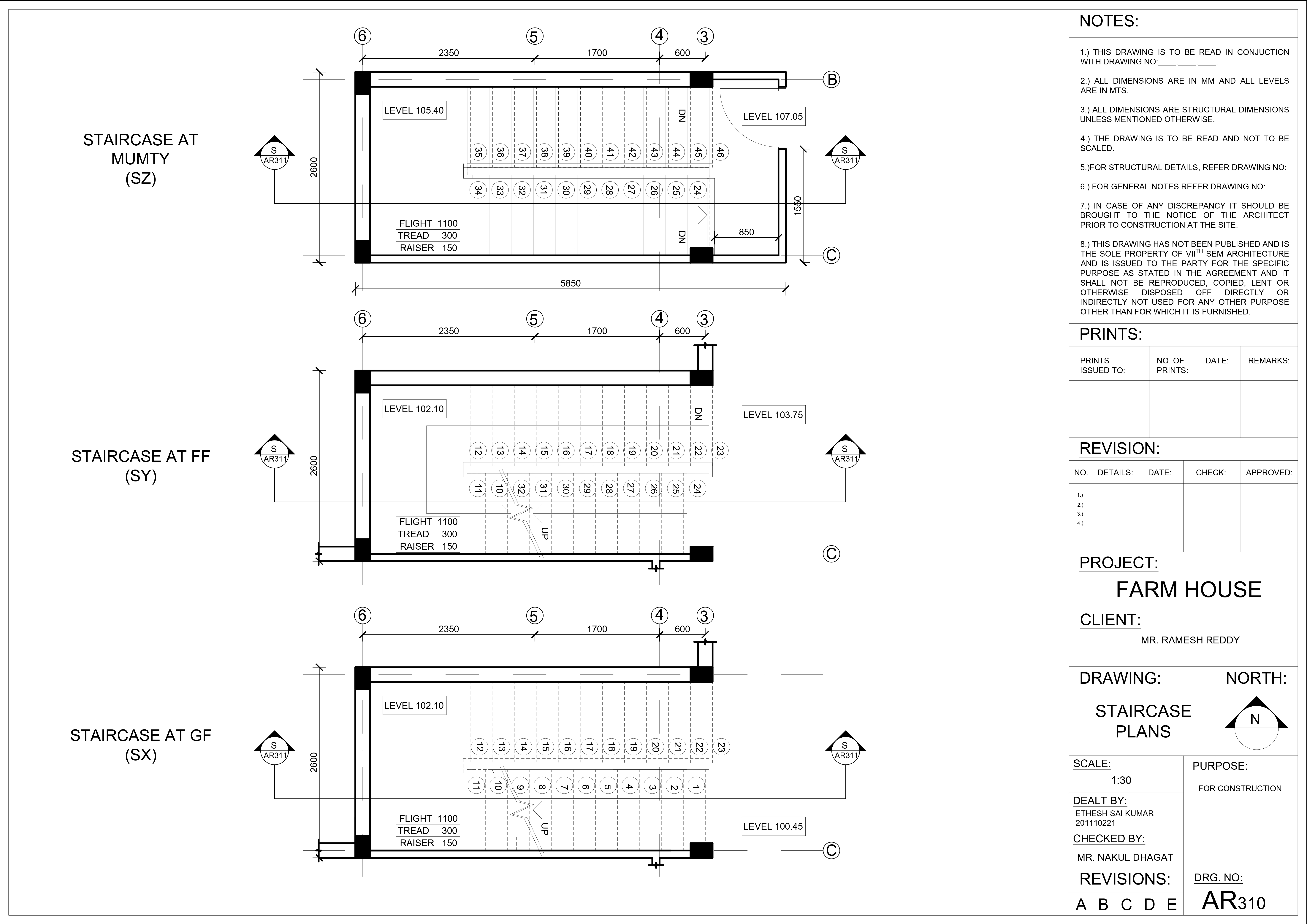

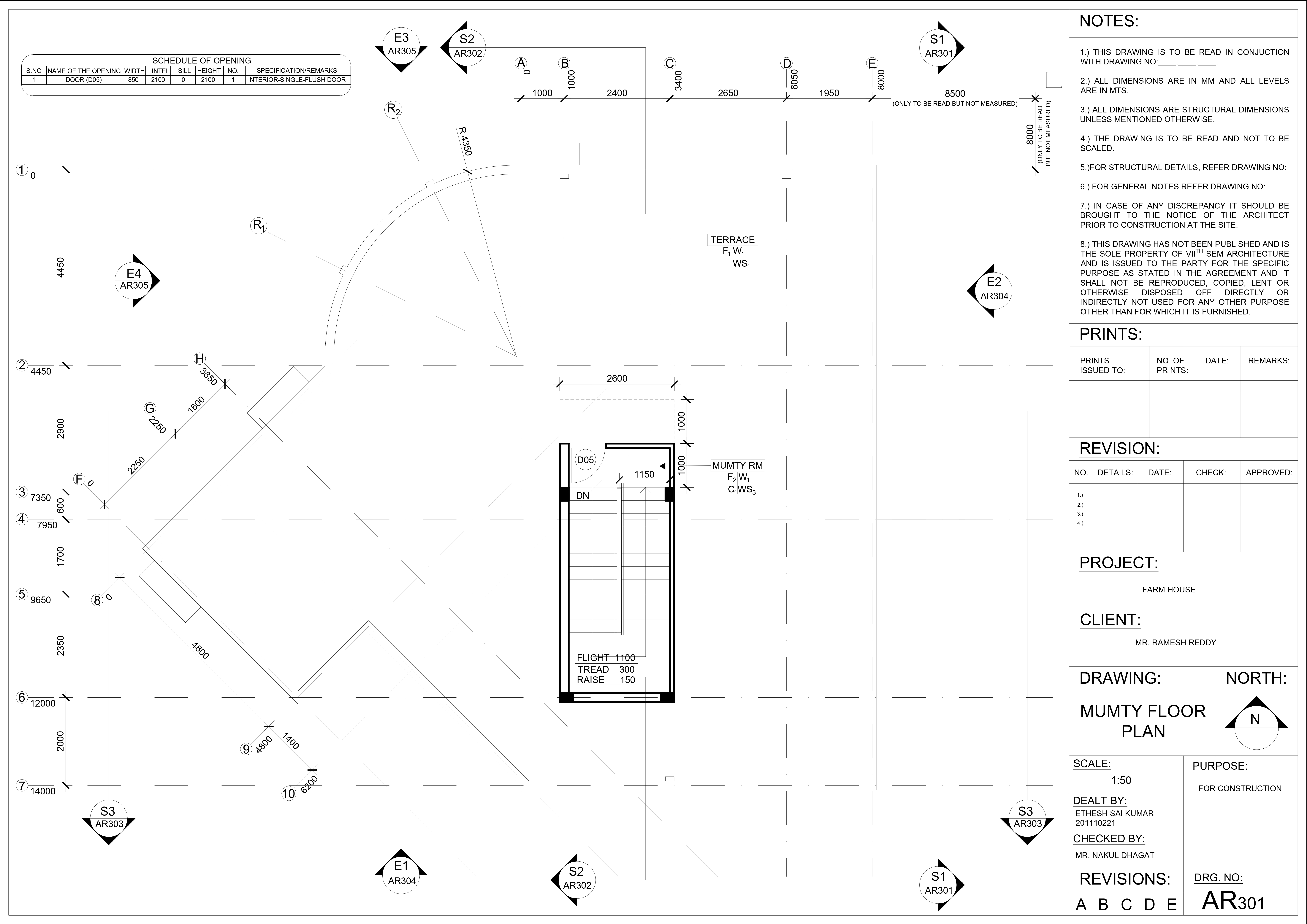

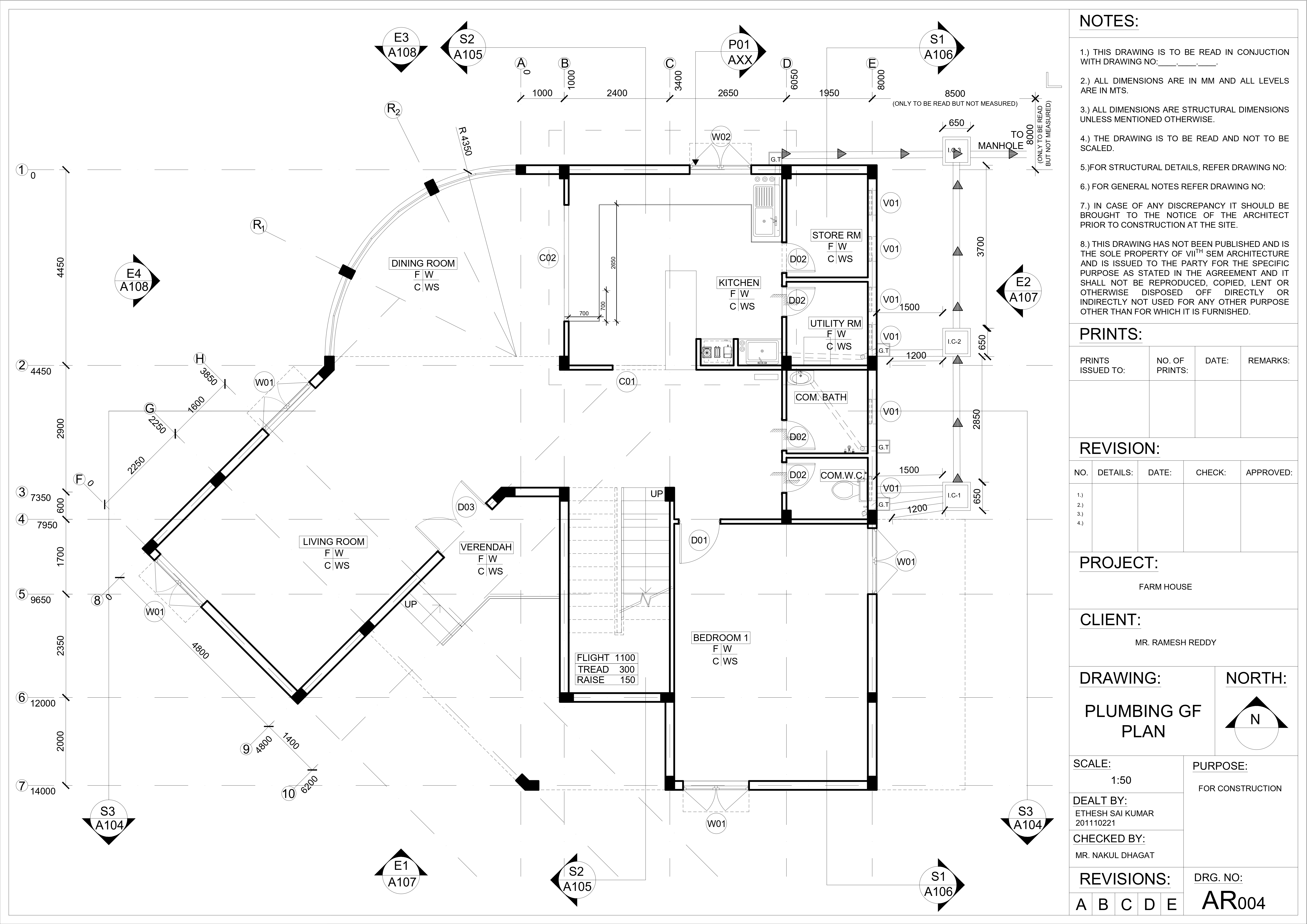

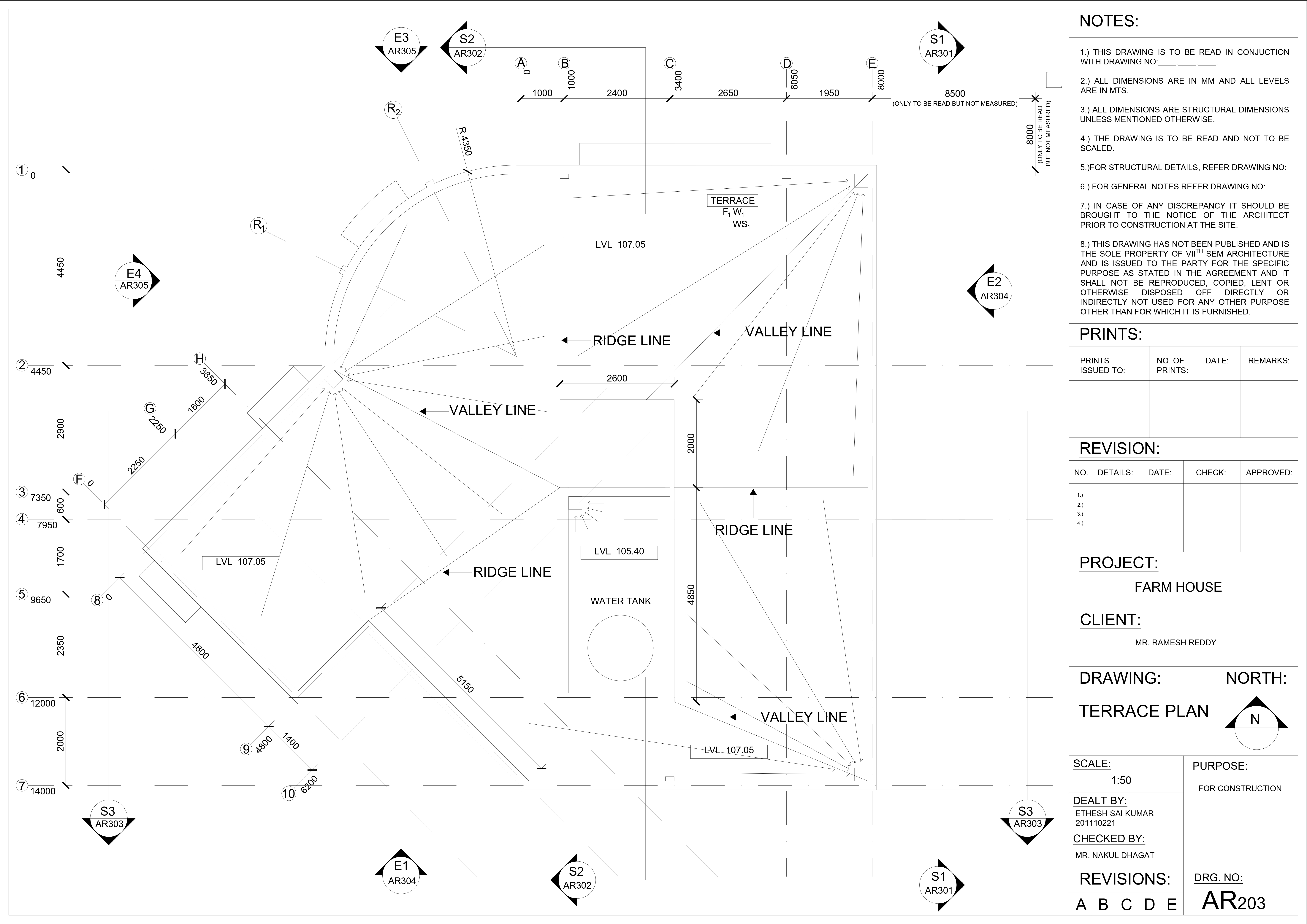

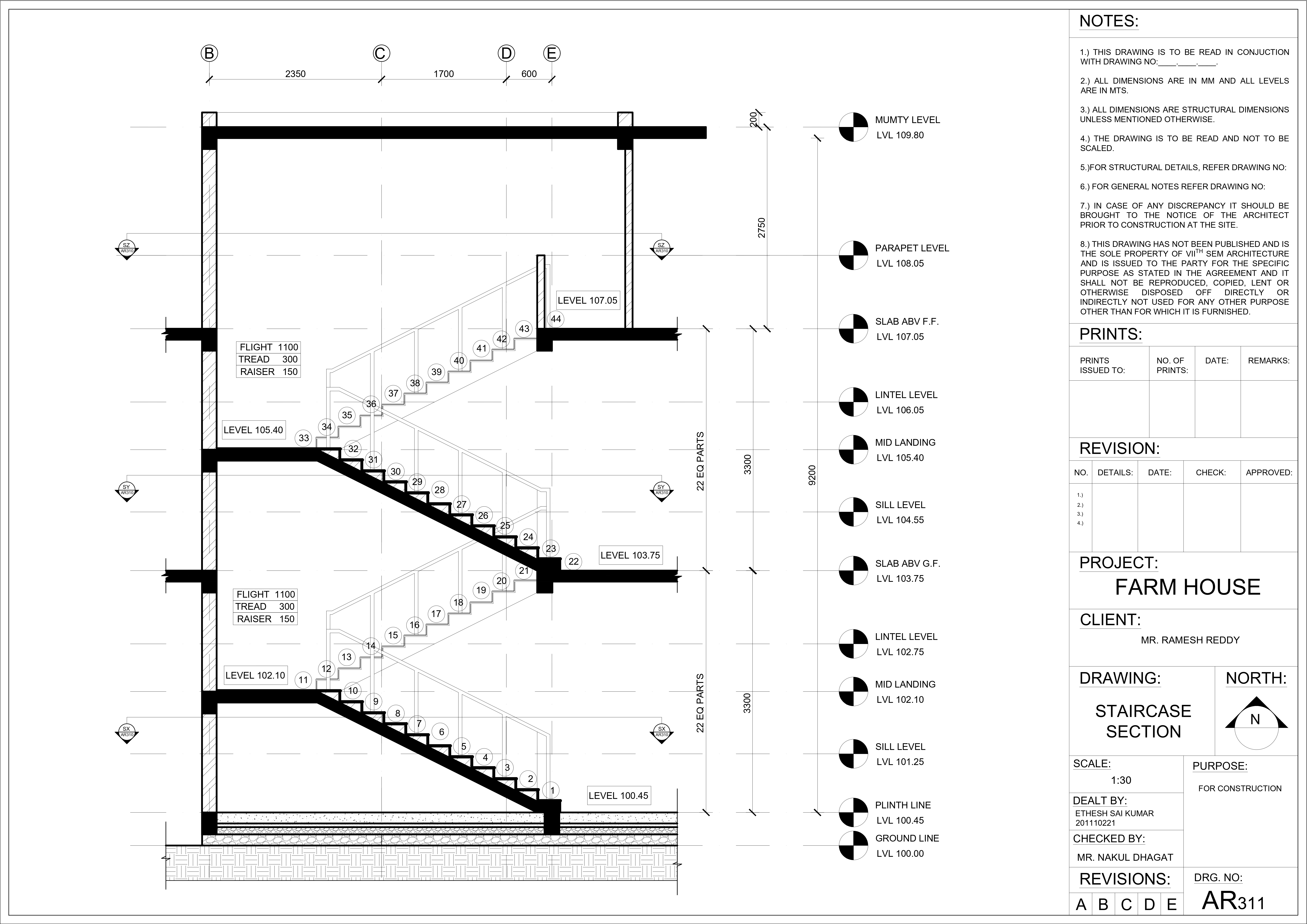

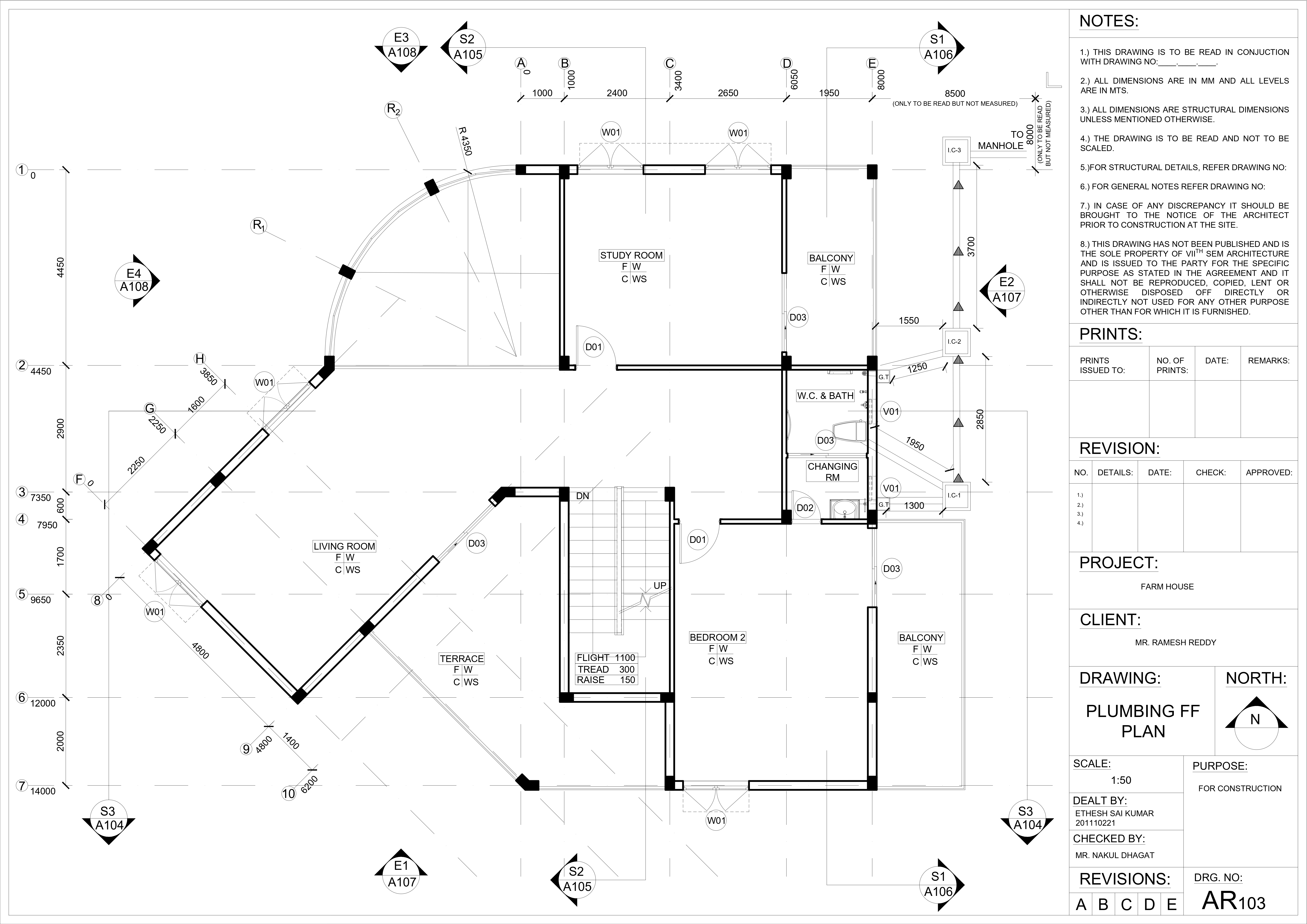

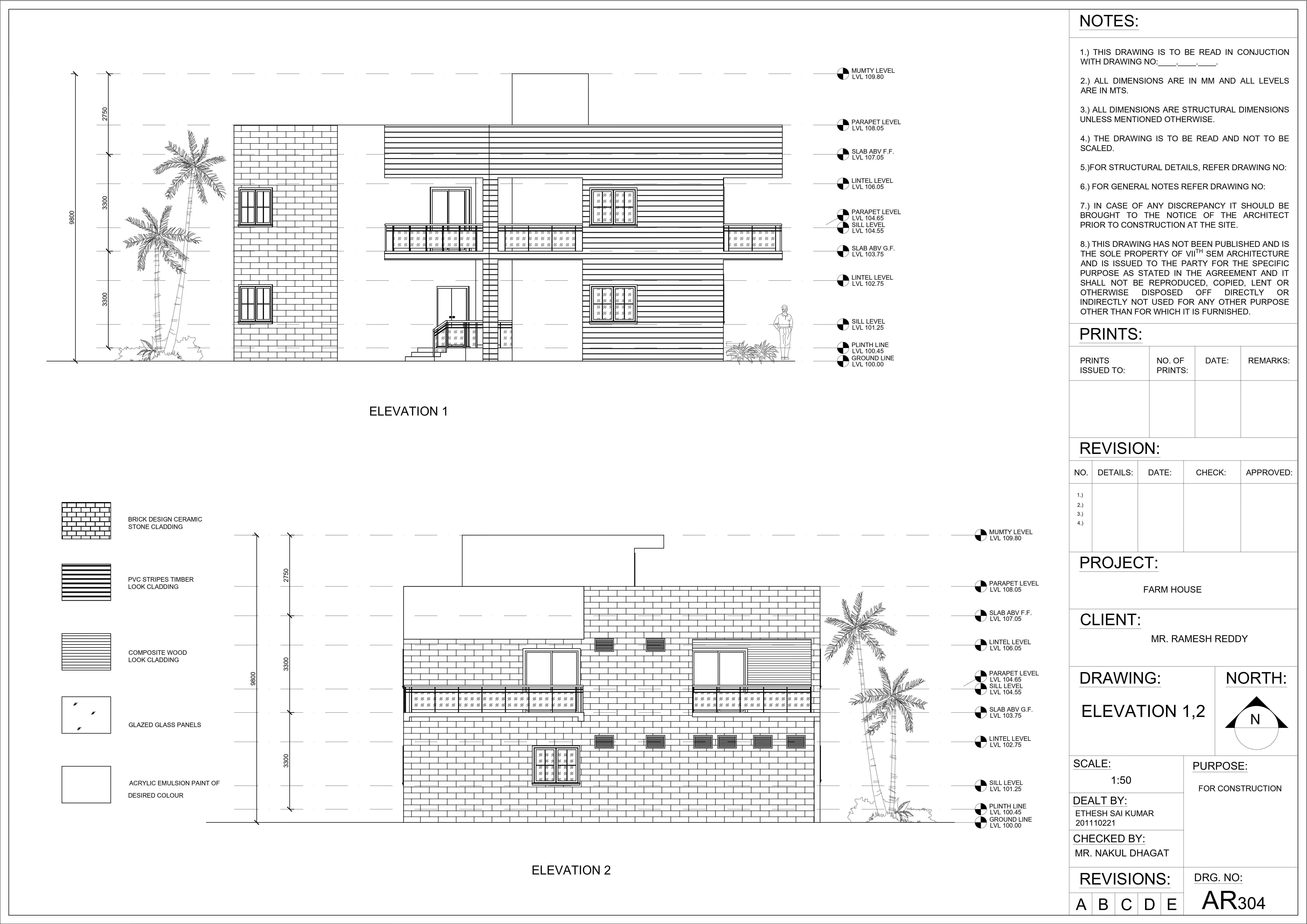

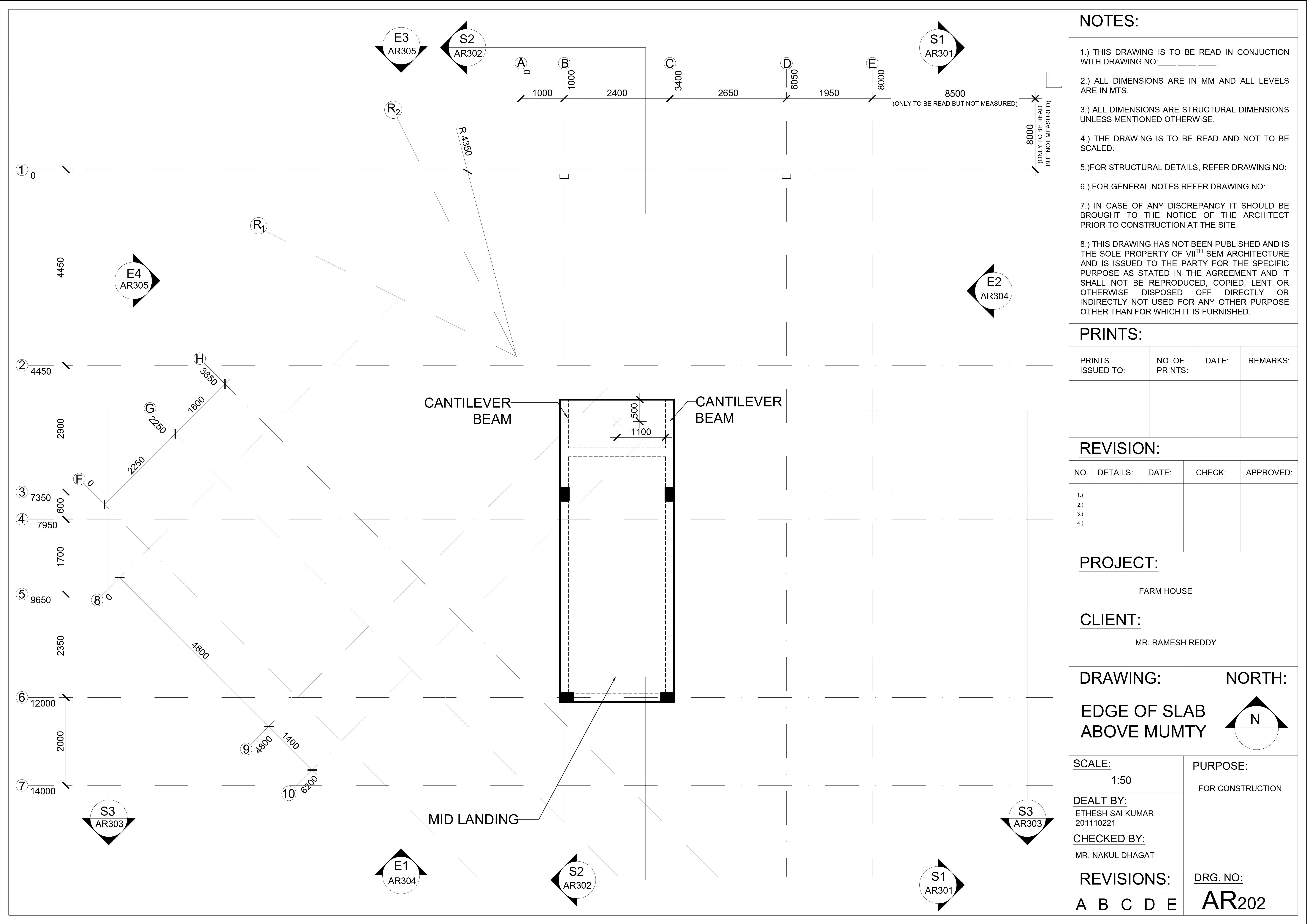

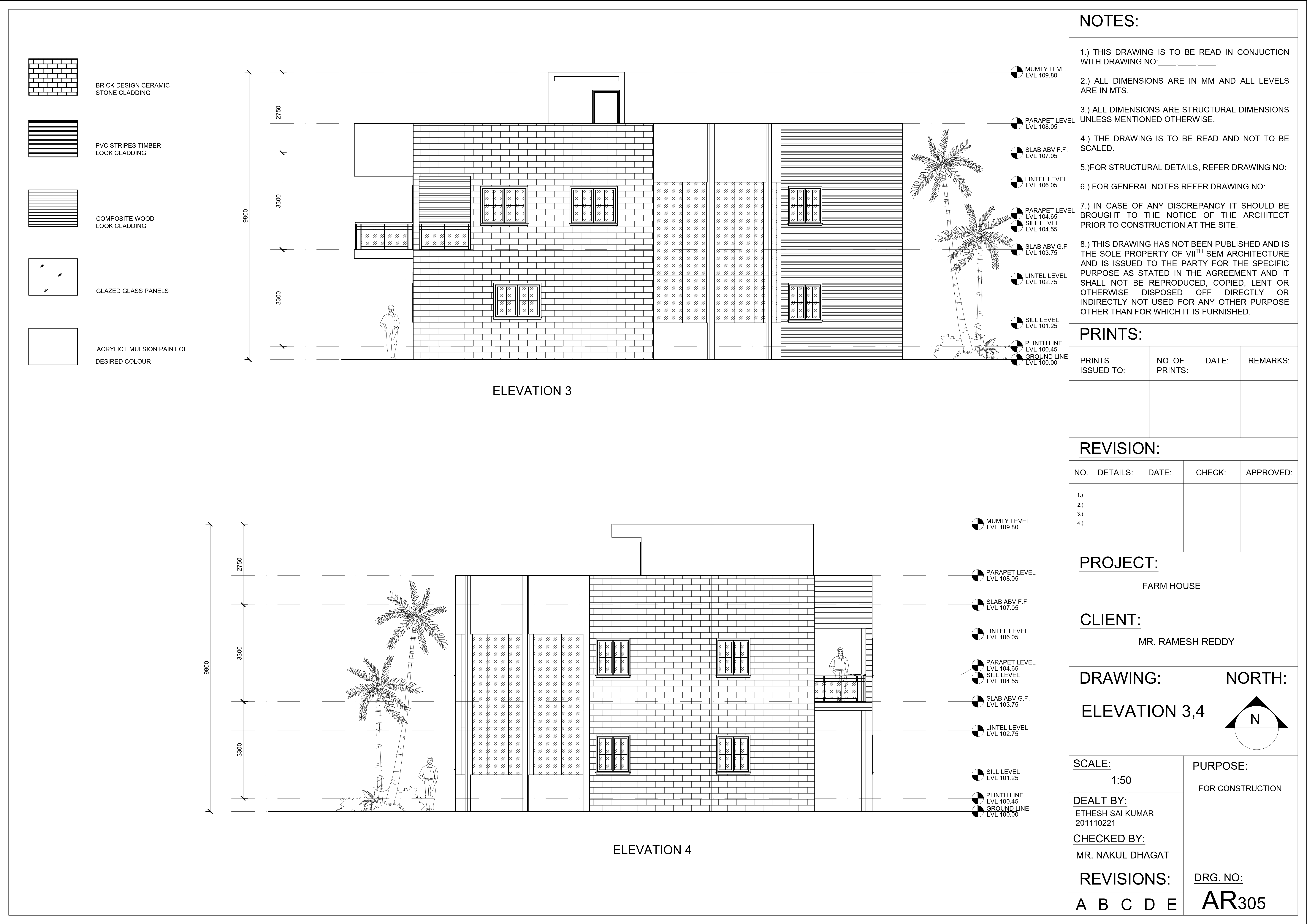

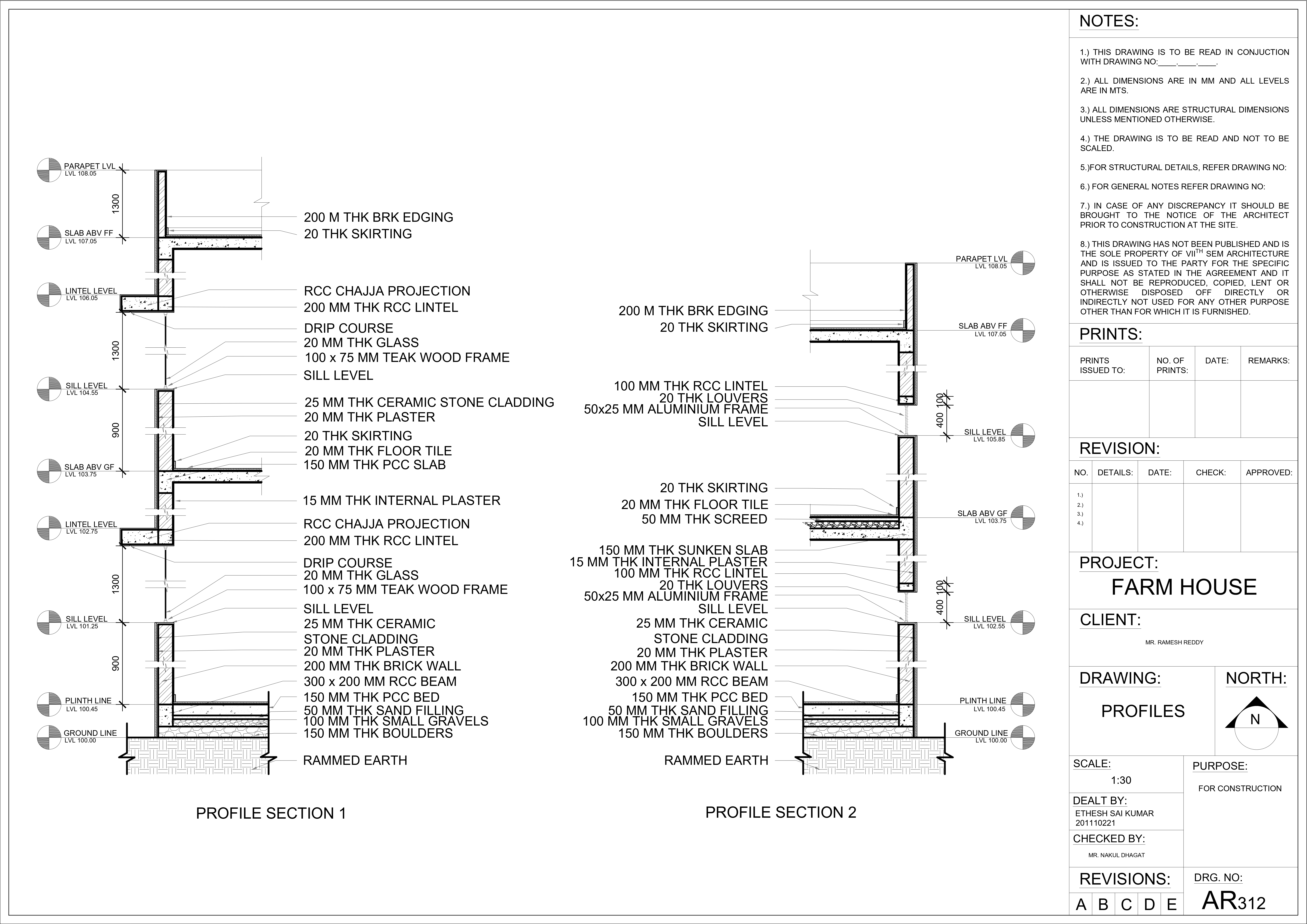

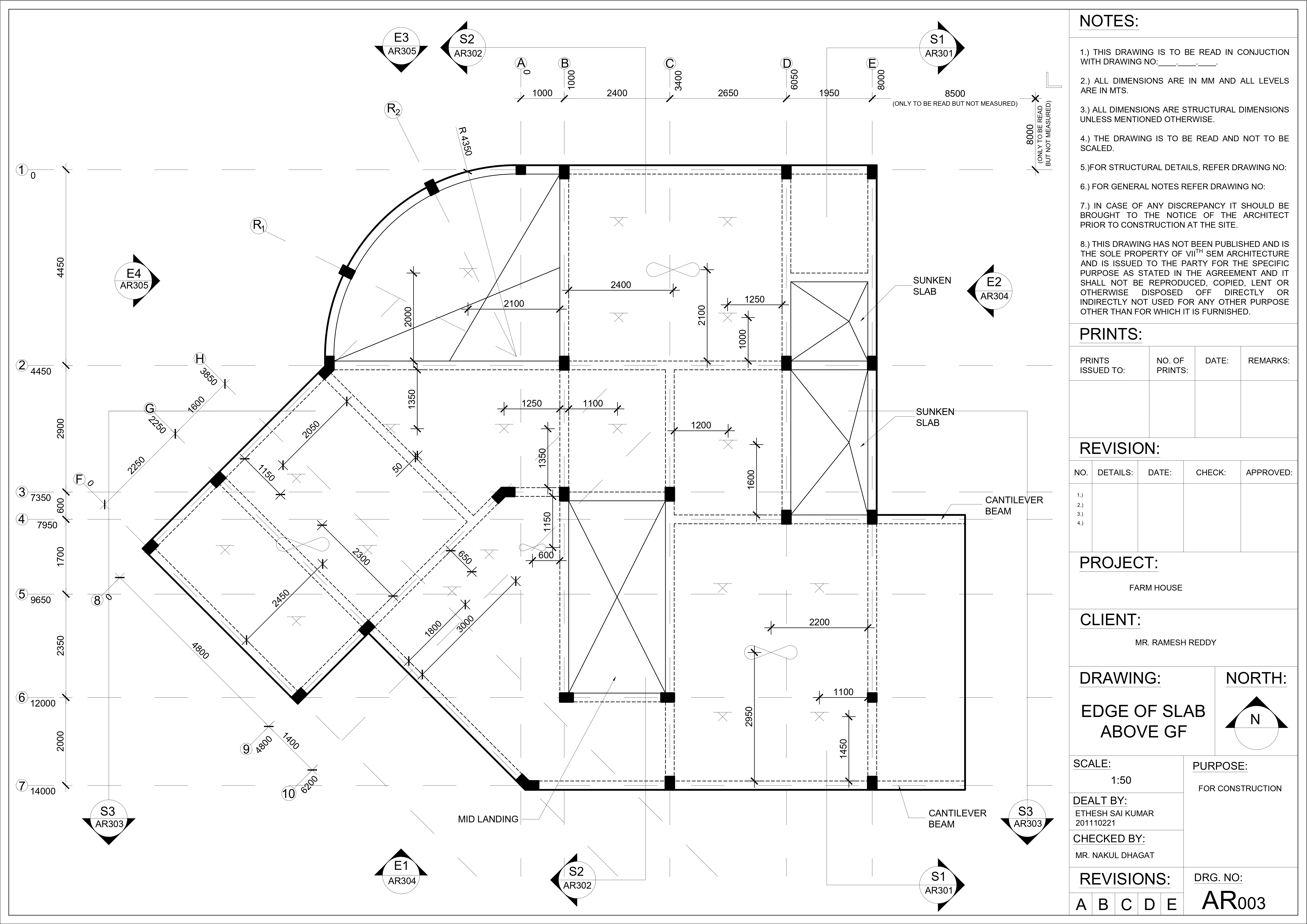

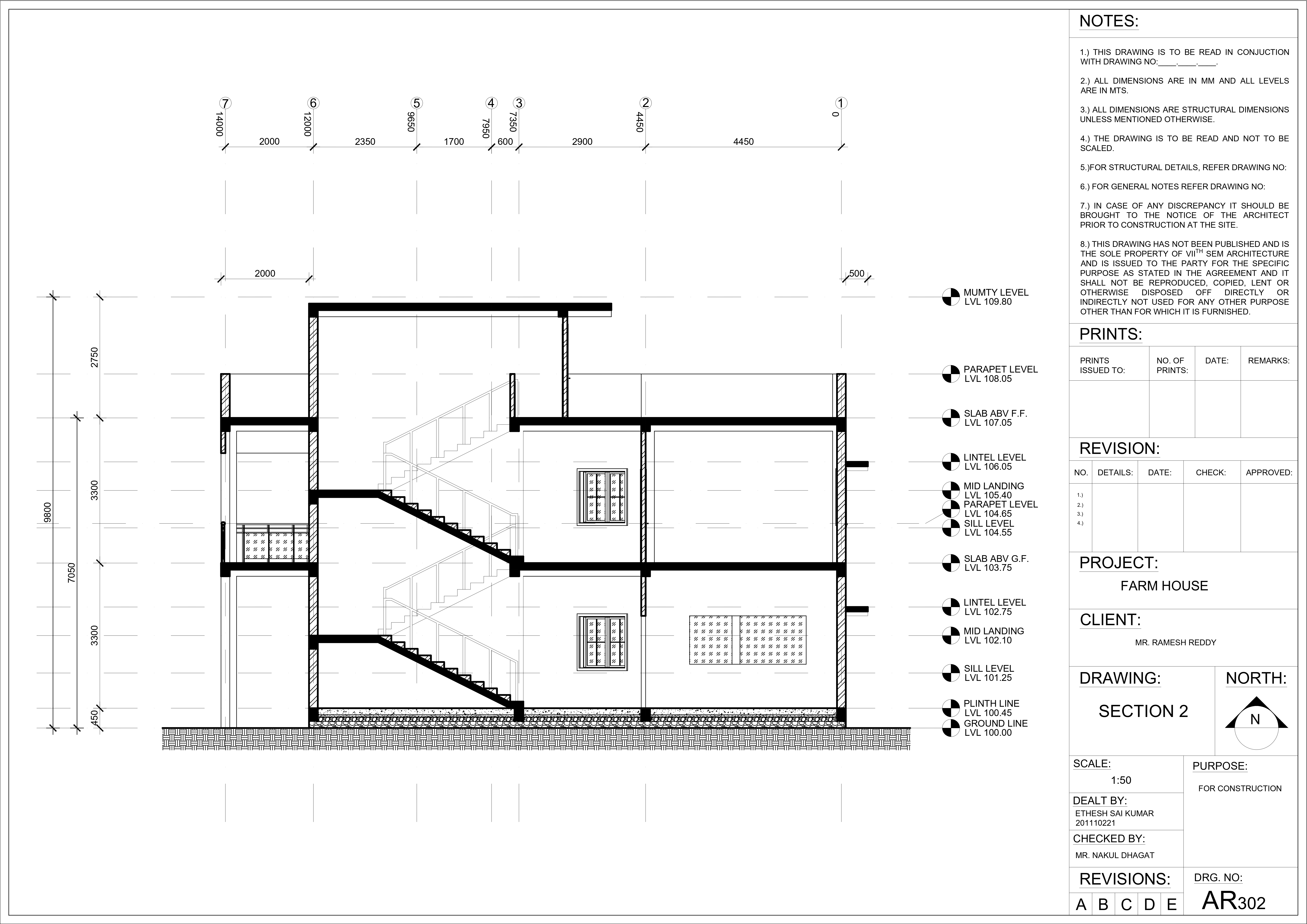

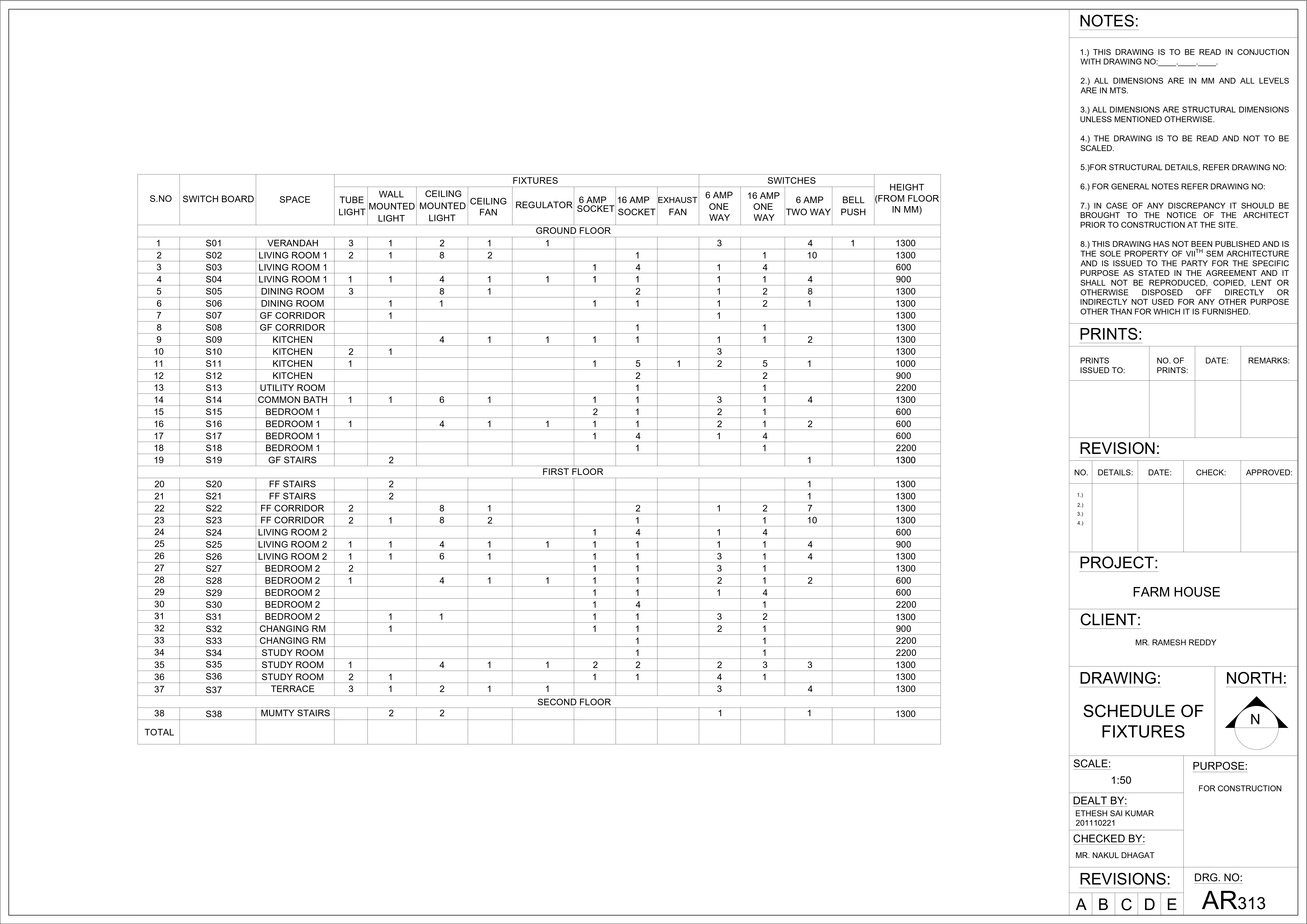

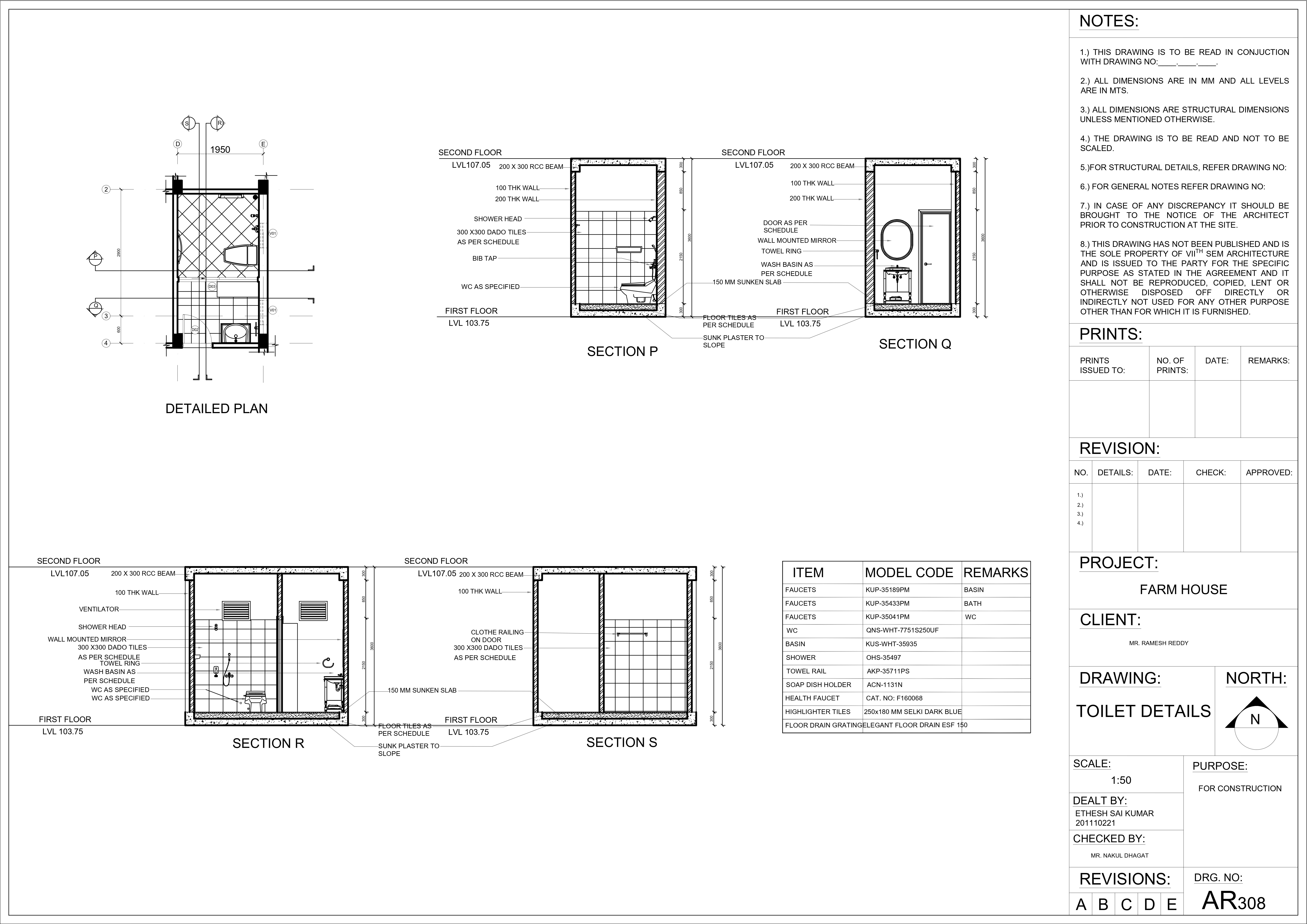

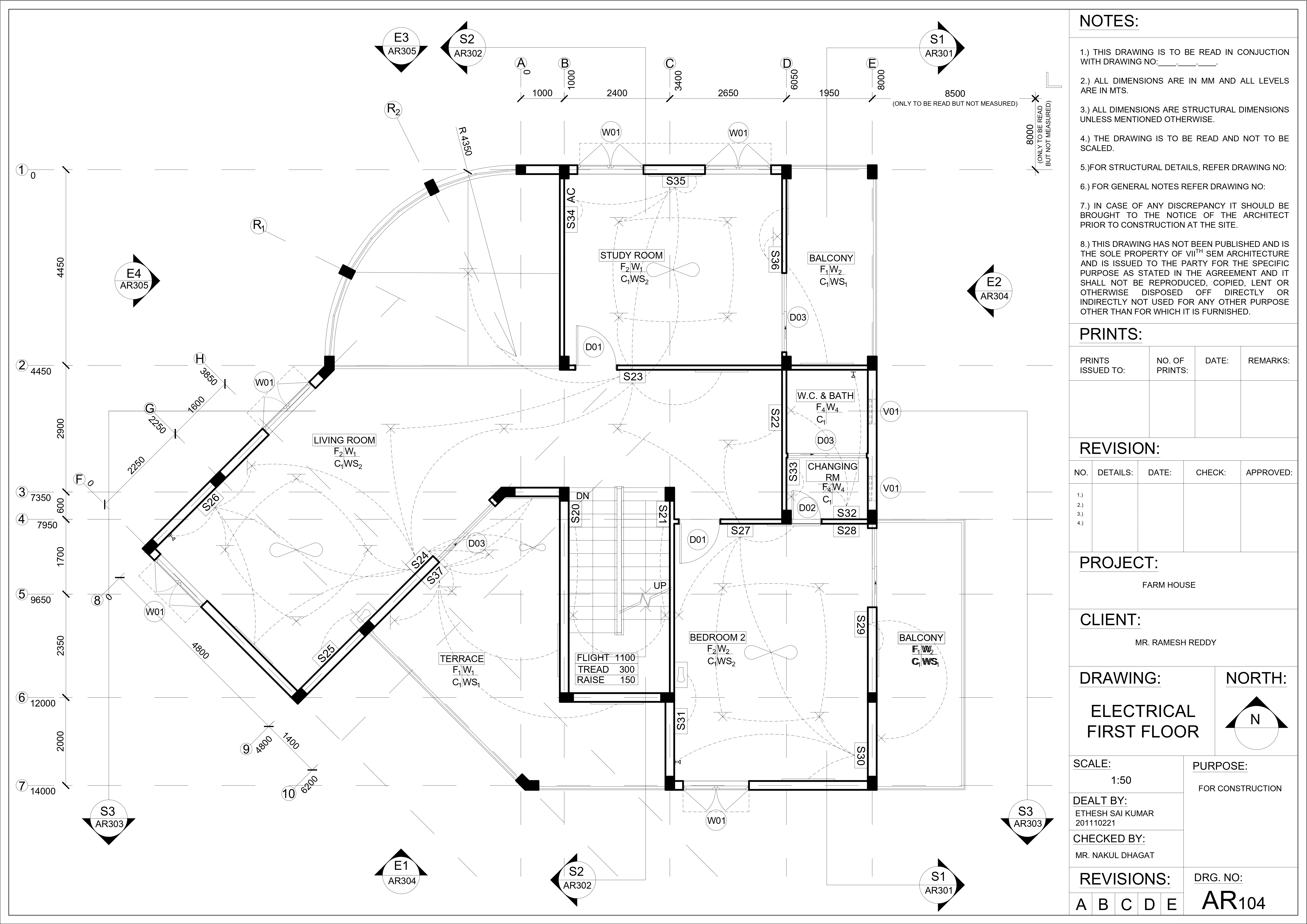

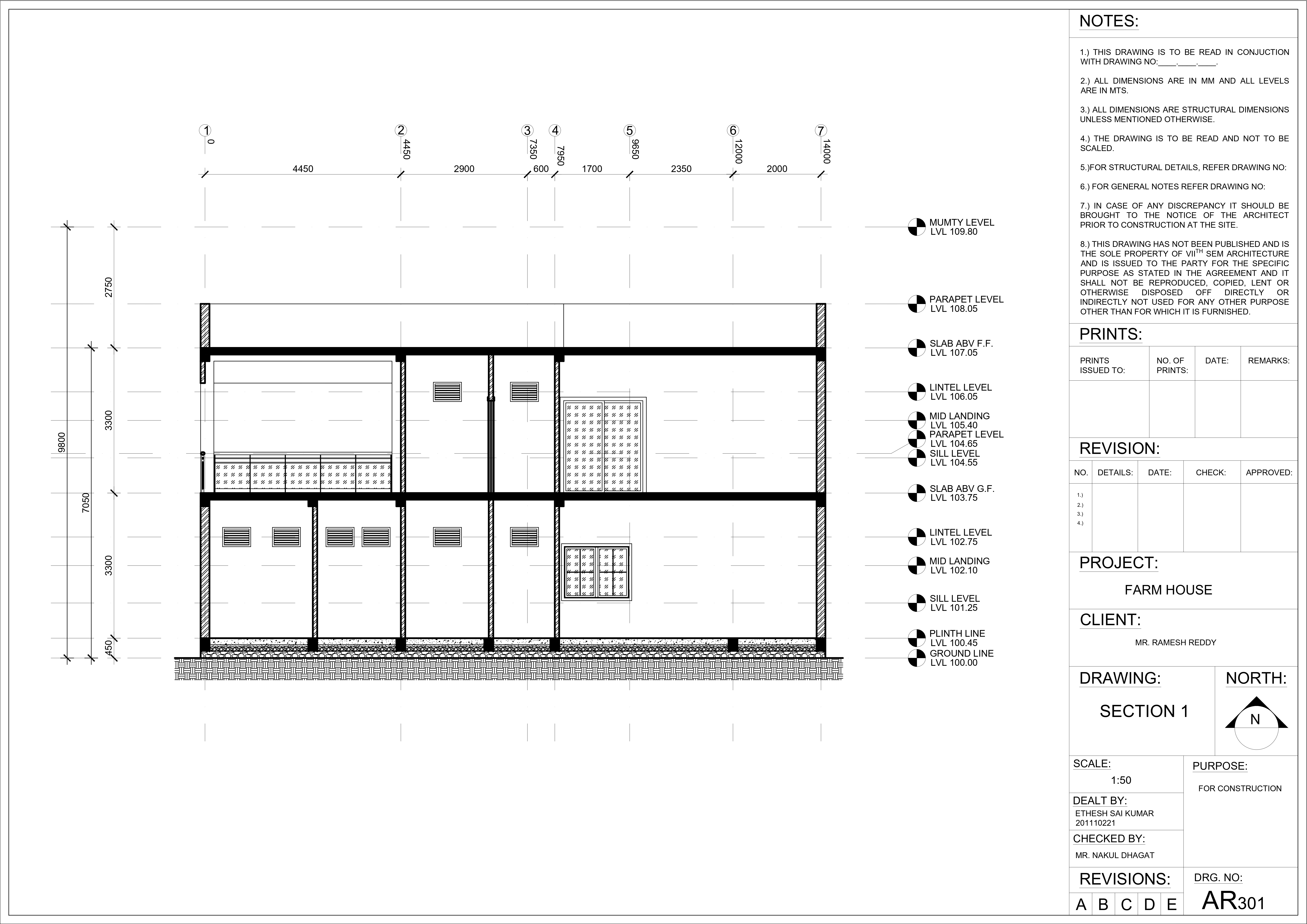

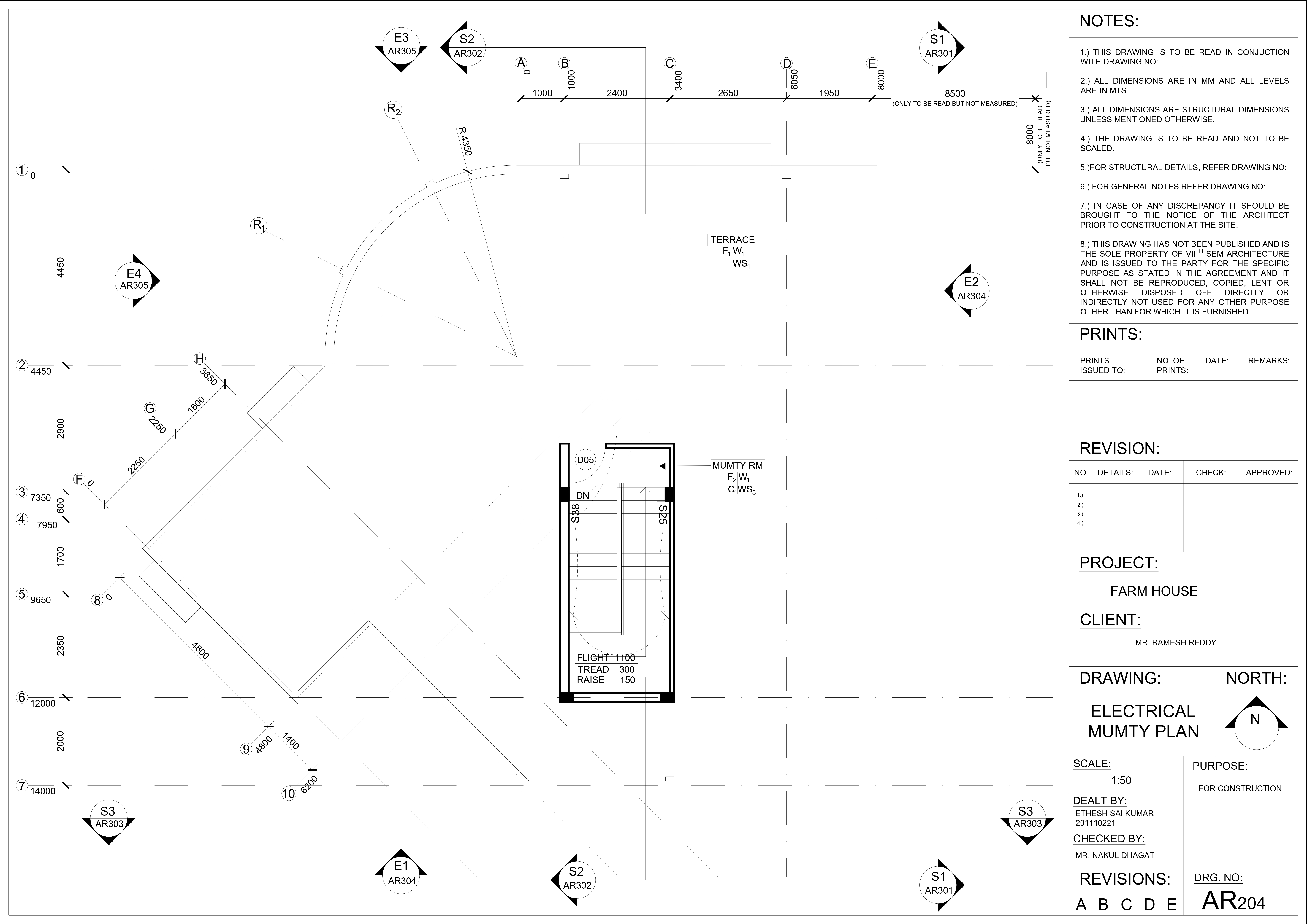

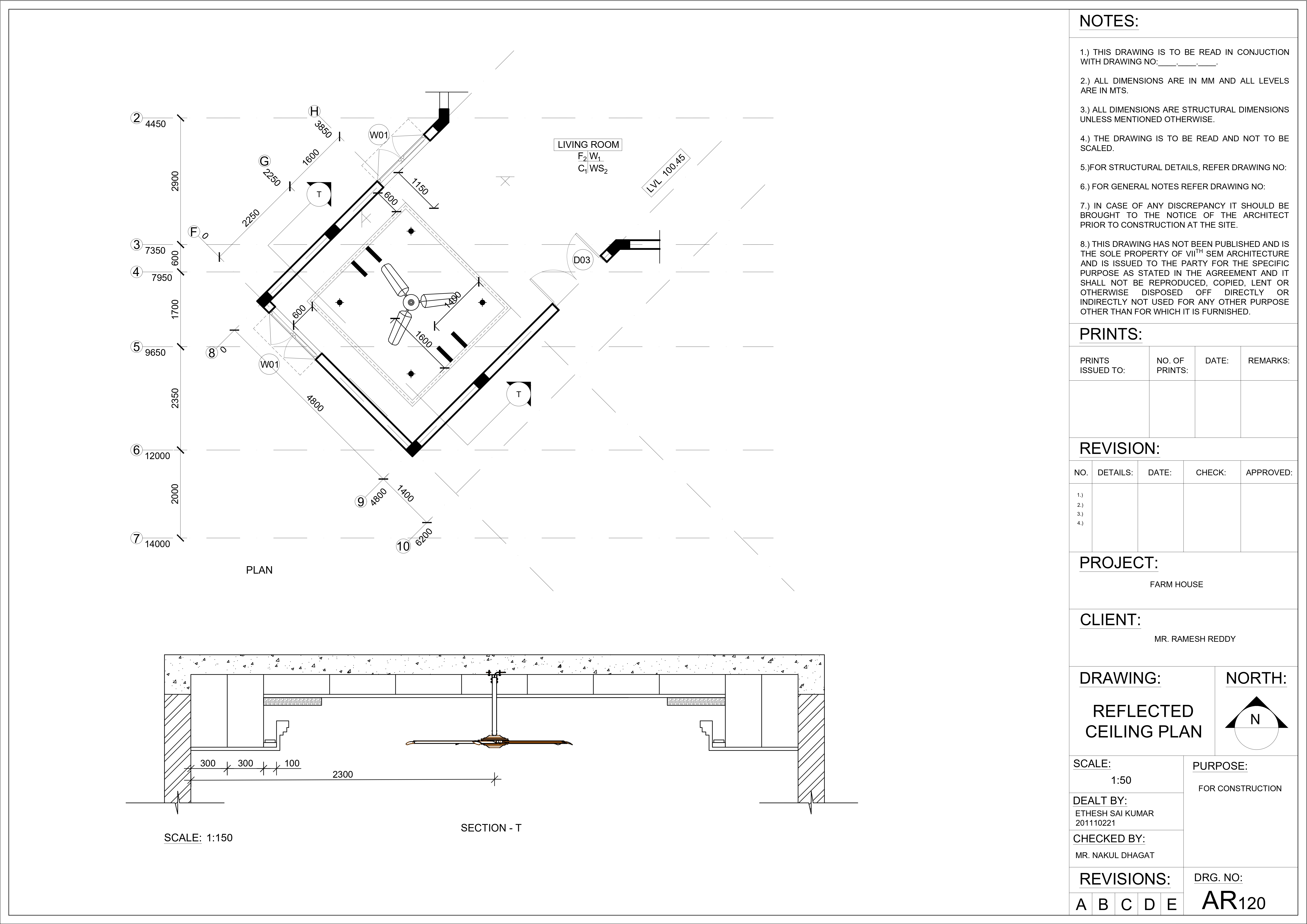

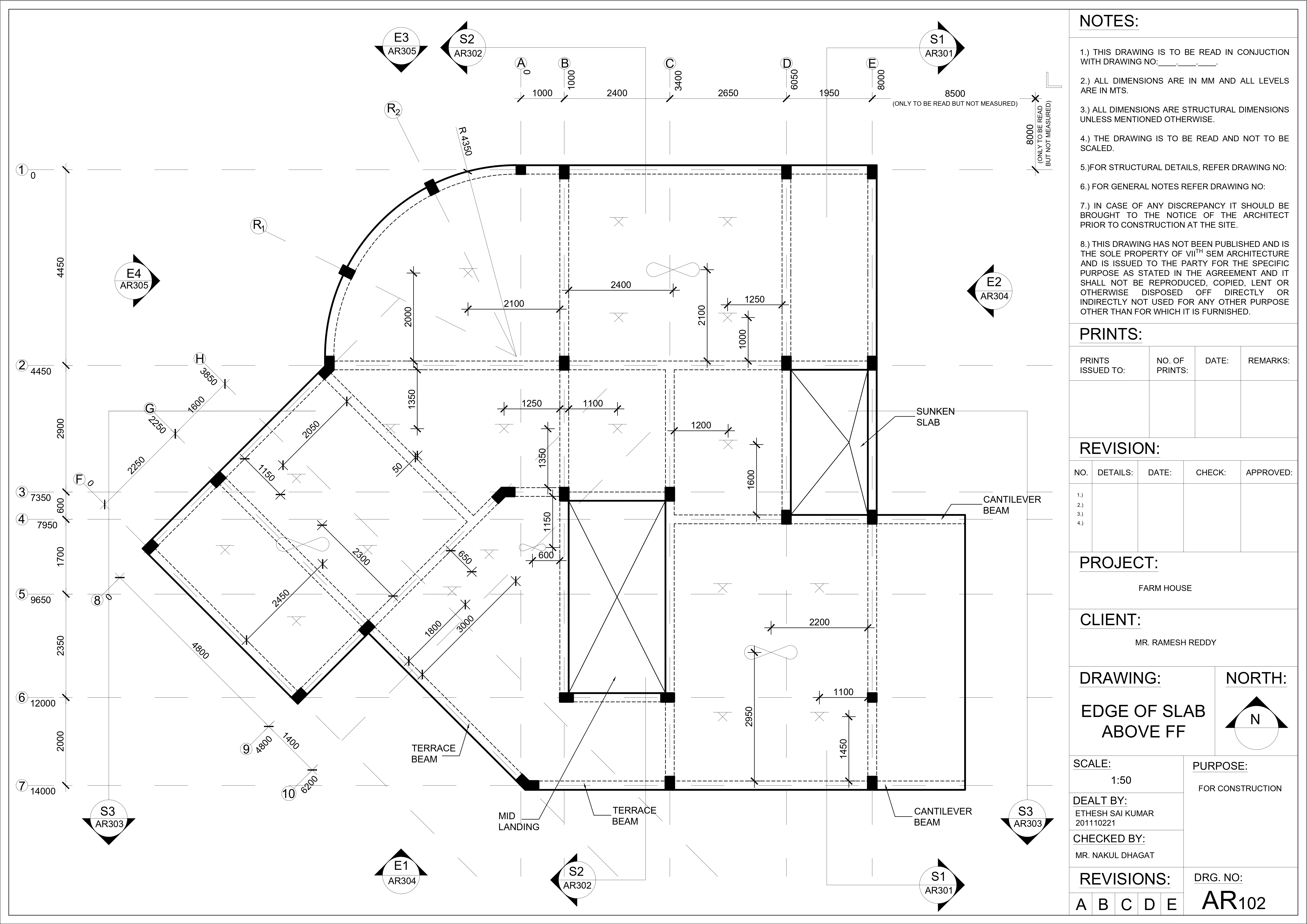

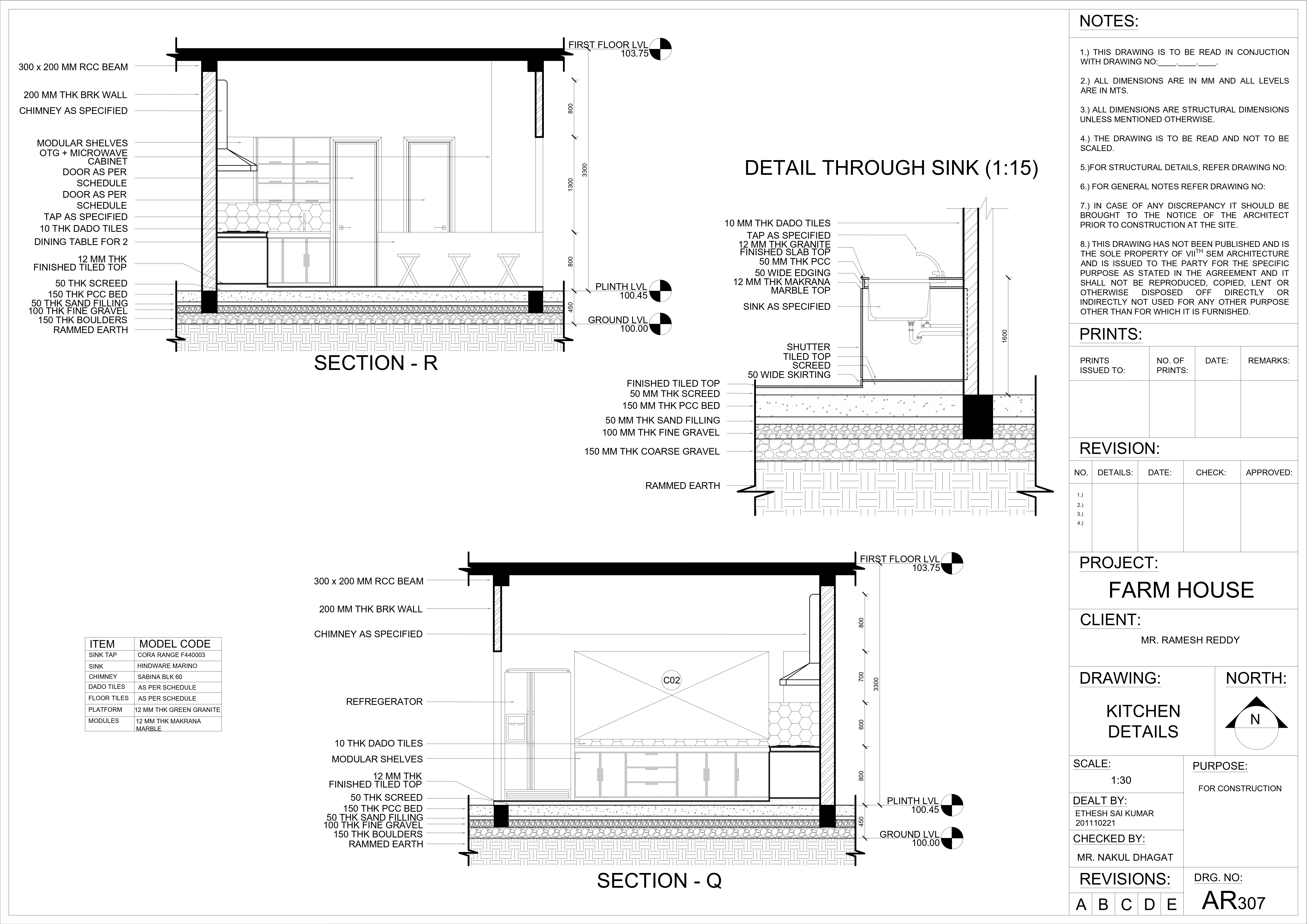

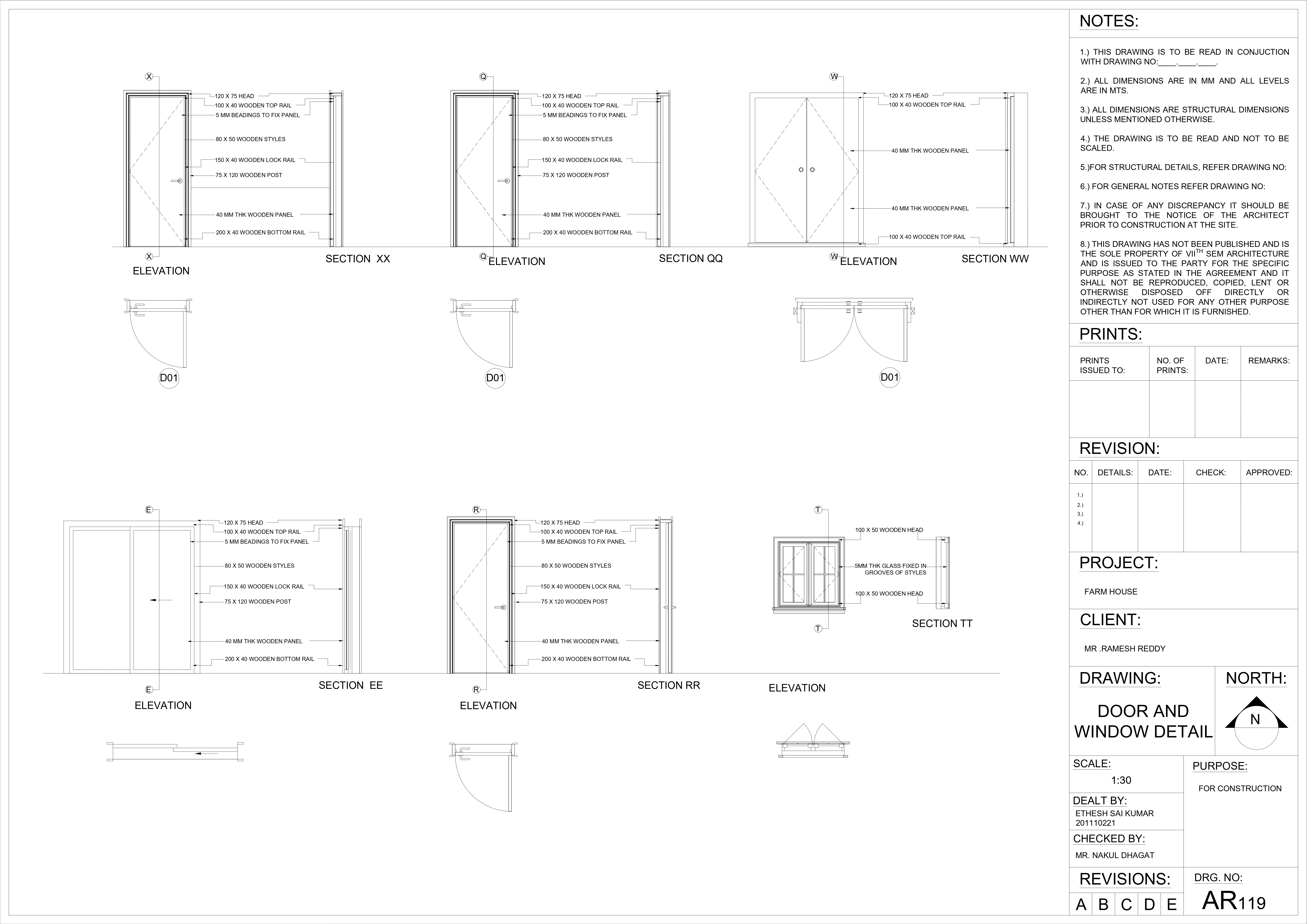

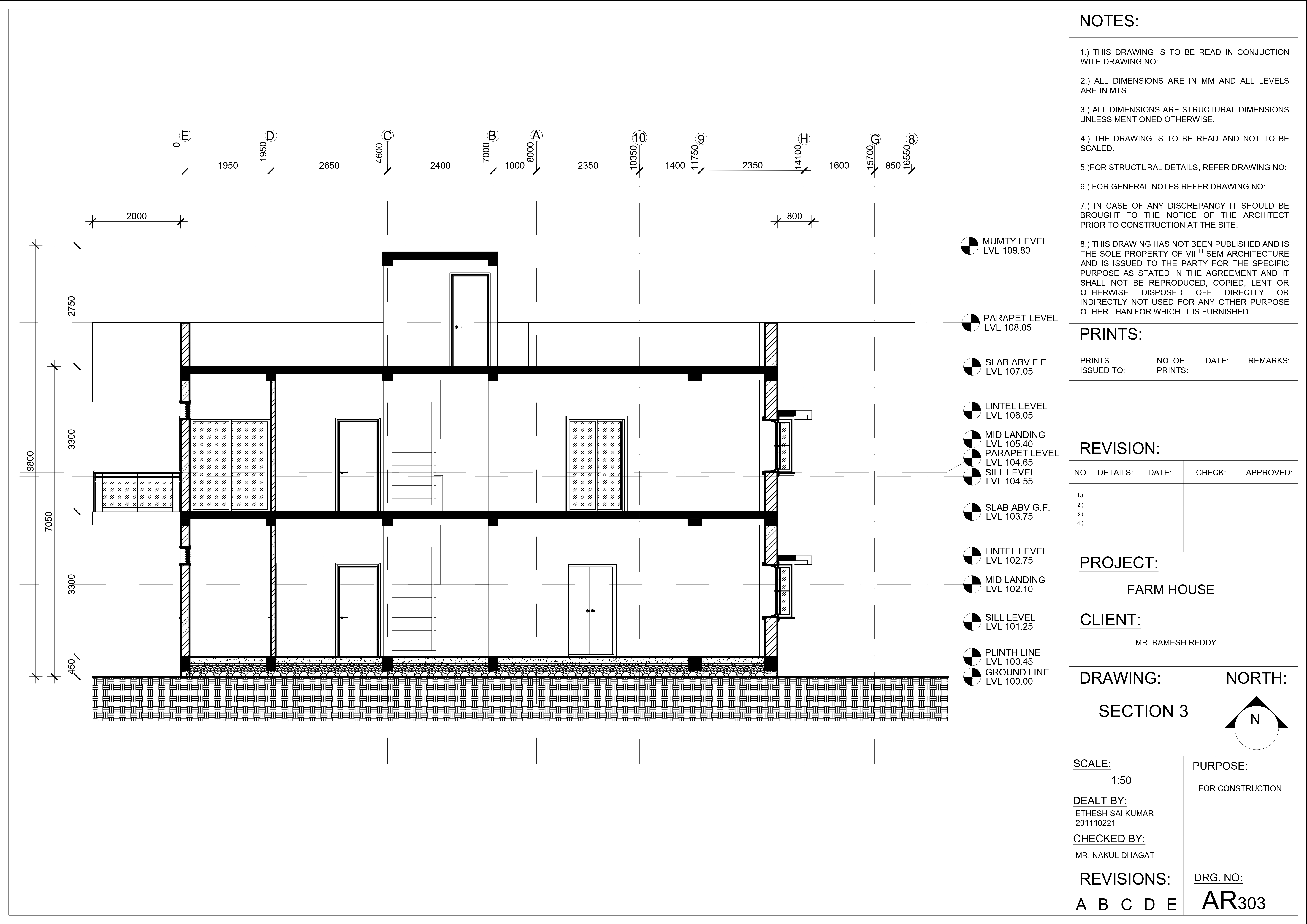

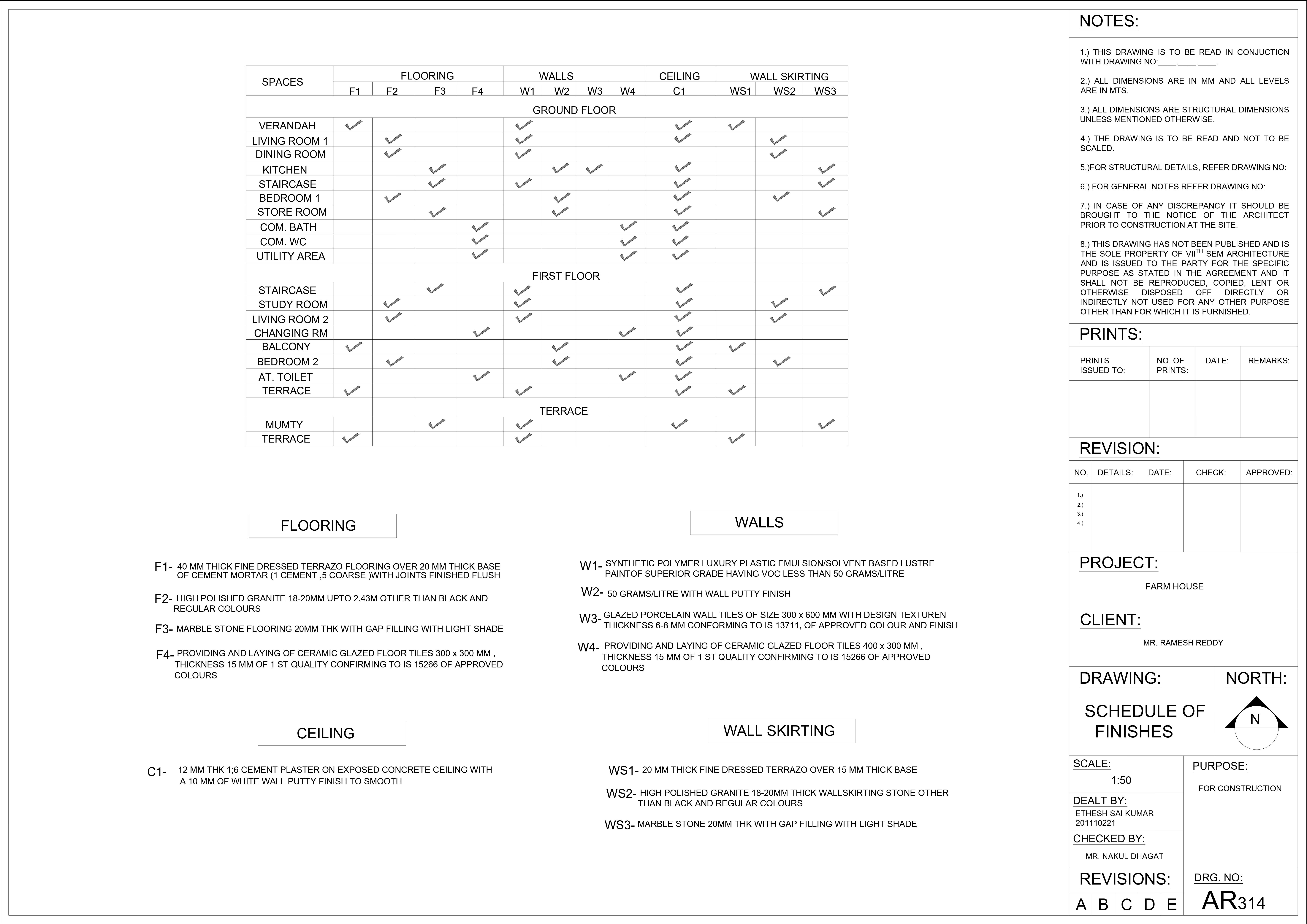

An academic exploration of construction documentation for a duplex house, translating architectural design into comprehensive working drawings. The project utilizes AutoCAD and Revit as primary platforms, developing floor plans, reflected ceiling plans, detailed sections, joinery specifications, and service coordination each sheet demonstrating technical precision and understanding of construction systems.​ Material specifications, dimensional accuracy, and spatial coordination converge in these technical drawings.
